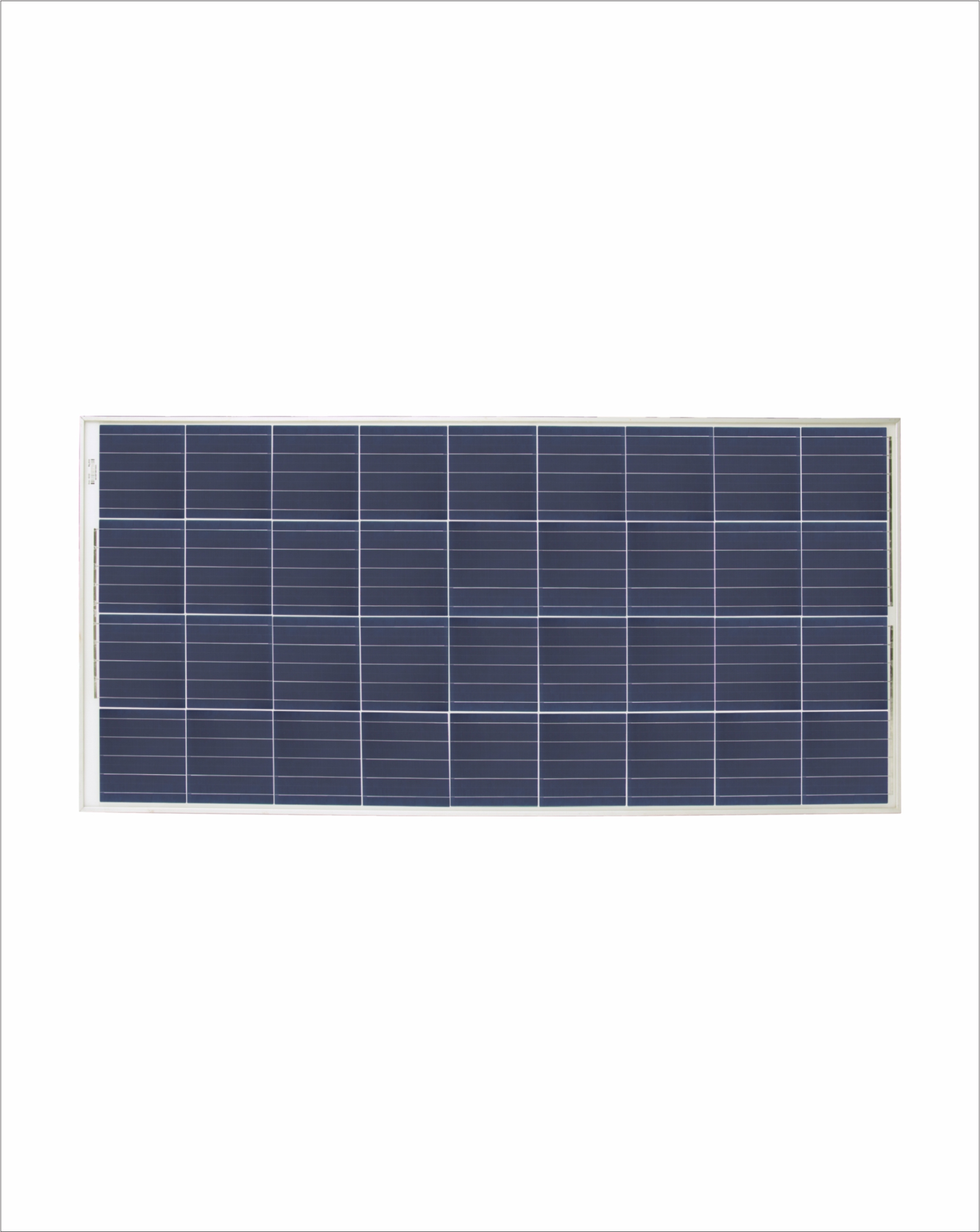

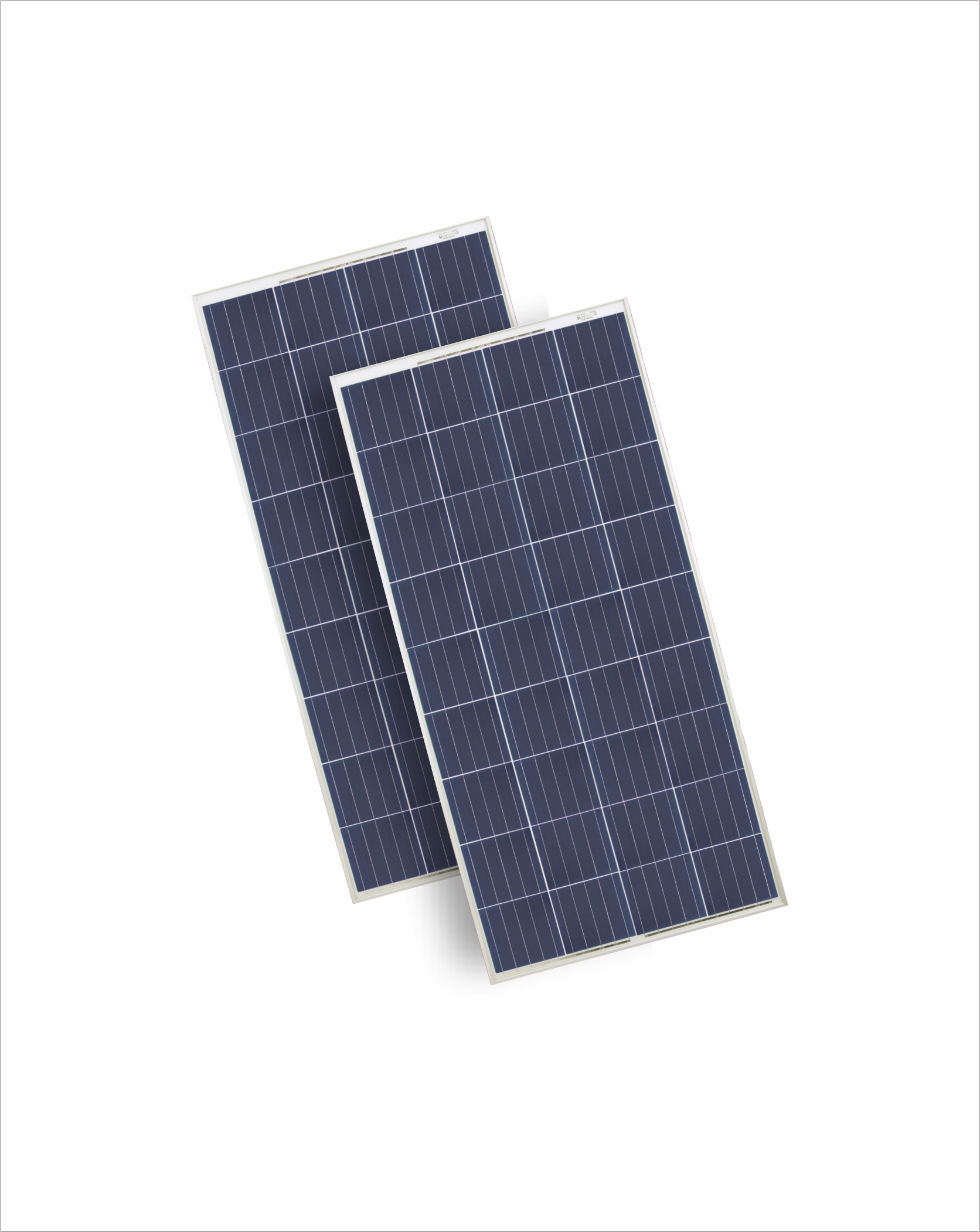

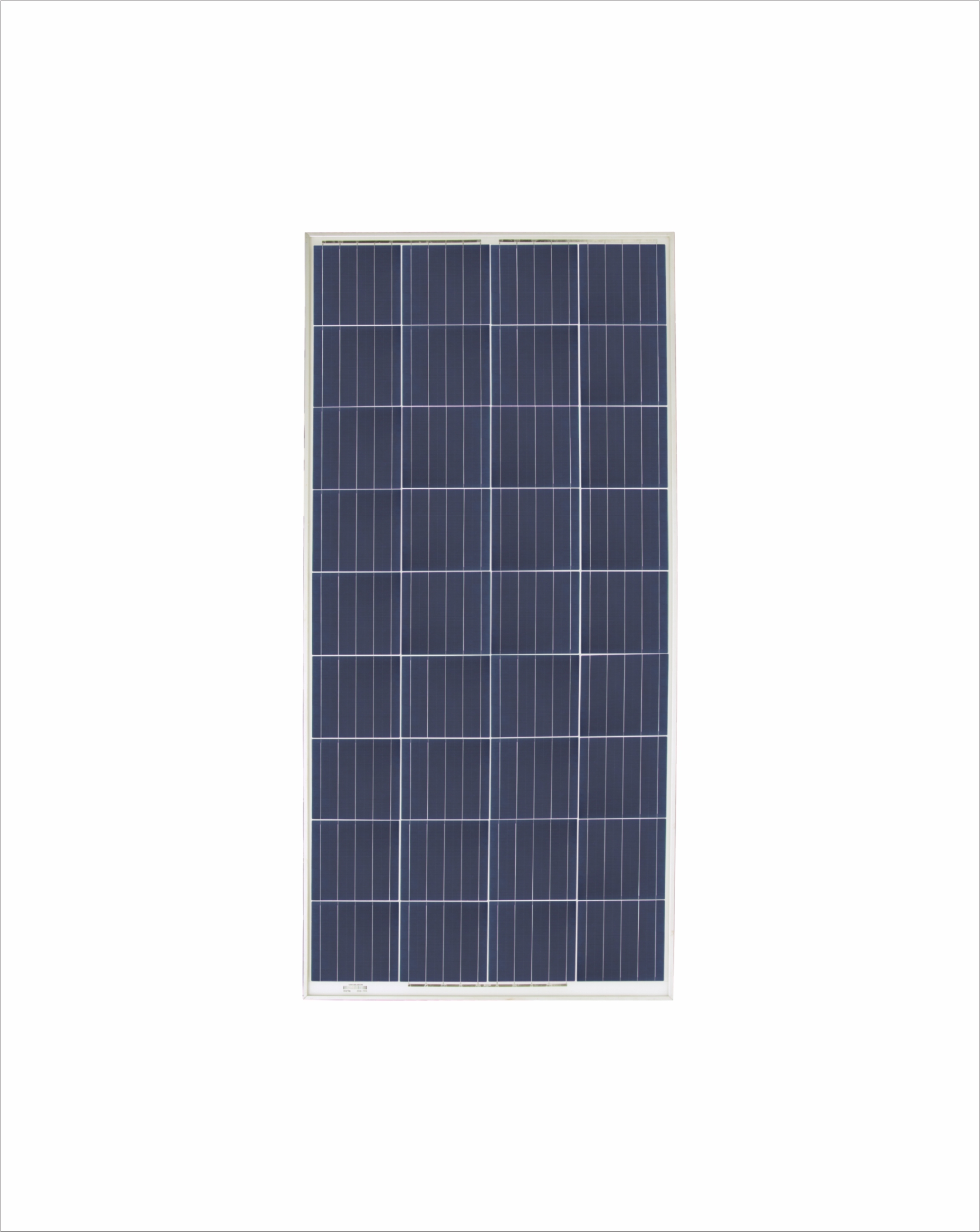

170W
Solar lighting solution for the modern home
Introducing d.light's powerful 170W solar panels, the game-changer in renewable energy solutions. These high-performance panels are designed to deliver exceptional efficiency and reliability, making them the perfect choice for both residential and commercial applications. With d.light's 170W solar panels, you can harness the abundant power of the sun to meet your energy needs. Whether you want to power your home, office, or other electrical systems, these panels provide a sustainable and cost-effective solution. Say goodbye to hefty electricity bills and hello to clean, renewable energy. These panels feature advanced technology that maximizes solar absorption, ensuring optimal energy production. Their durable and weather-resistant design ensures long-term performance even in harsh conditions, making them a reliable choice for any environment. The versatility of d.light's 170W solar panels extends to various use cases. From powering appliances and charging electric vehicles to running agricultural equipment, these panels have the capability to transform the way you utilize energy. Join the renewable energy revolution with d.light's 170W solar panels. Embrace the future of clean energy and take control of your power supply. Experience the benefits of sustainable living today.
Enquire Now- Quality – Superior EVA encapsulation for enhanced durability
- Efficiency – Higher cell efficiency for charging batteries and devices faster
- Coating – Anti-reflective coating and back surface (BSF) absorb more light for better performance
- Compliance – Strict adherence to all IEC standards for higher performance delivery
- Frame – Lightweight and durable weather-resistant aluminium frame
- Cells – A Grade superior power cells
Save more on electricity bills with d.light solar panels. Charge small appliances such as mobile phones and DC LED lights and even provide a power source for your inverters and batteries with the d.light solar panels range which is available in options ranging from 10W to 335W. d.light solar panels are manufactured from high quality polycrystalline cells and high-strength aluminium frame for better torsion resistance against extreme weather conditions. Its Anti-reflective coating and back surface (BSF) absorb more light for better performance even in cloudy and low light conditions. The Advanced Ethyl Vinyl Acetate (EVA) encapsulation brings enhanced durability and protection.
| Module Dimensions (L X W X H) in mm | 1480 x 660 x 35 |
| Weight (KG) | 10.9 |
| Junction Box/ Terminal Box | 2 Bypass Diode |
| Cables and connectors | Yes, 1 meter each side, 4sq mm |
| Superstrate | High Transmission Low Iron tempered glass |
| Cells | 36 Polycrystalline Cells |
| Solar Cell shape | Square |
| Solar cell geometry in mm | 156.75 x 156.75 mm |
| Backsheet | Composite Film |
| Frame | Anodized Aluminium Frame |
| Packaging Method | 3 mono cartons in 1 master carton |
| Electrical characteristics | |
| Power (Pm) in Watts (nominal) 170 | |
| Open Circuit Voltage (Voc) in Volts 23 | |
| Short Circuit Current (Isc) in Amps 8.9 | |
| Voltage at Maximum Power (Vmp) in volts 19 | |
| Current at maximum Power (Imp) in Amps 8.4 | |
| Maximum system Voltage (VDC) 1000 V | |
| Module Efficiency ? (%) >14% | |
| Voltage | 12 |
