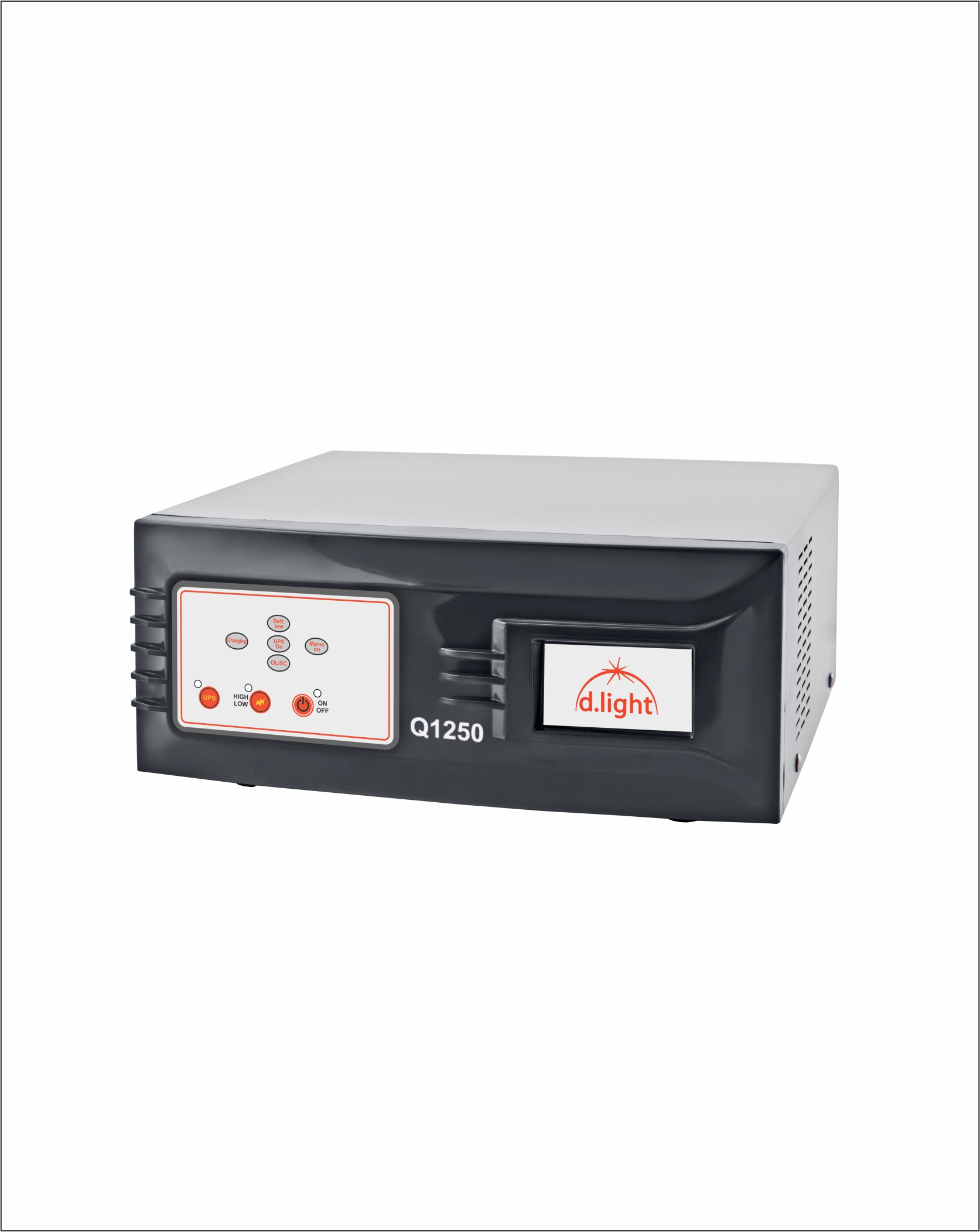

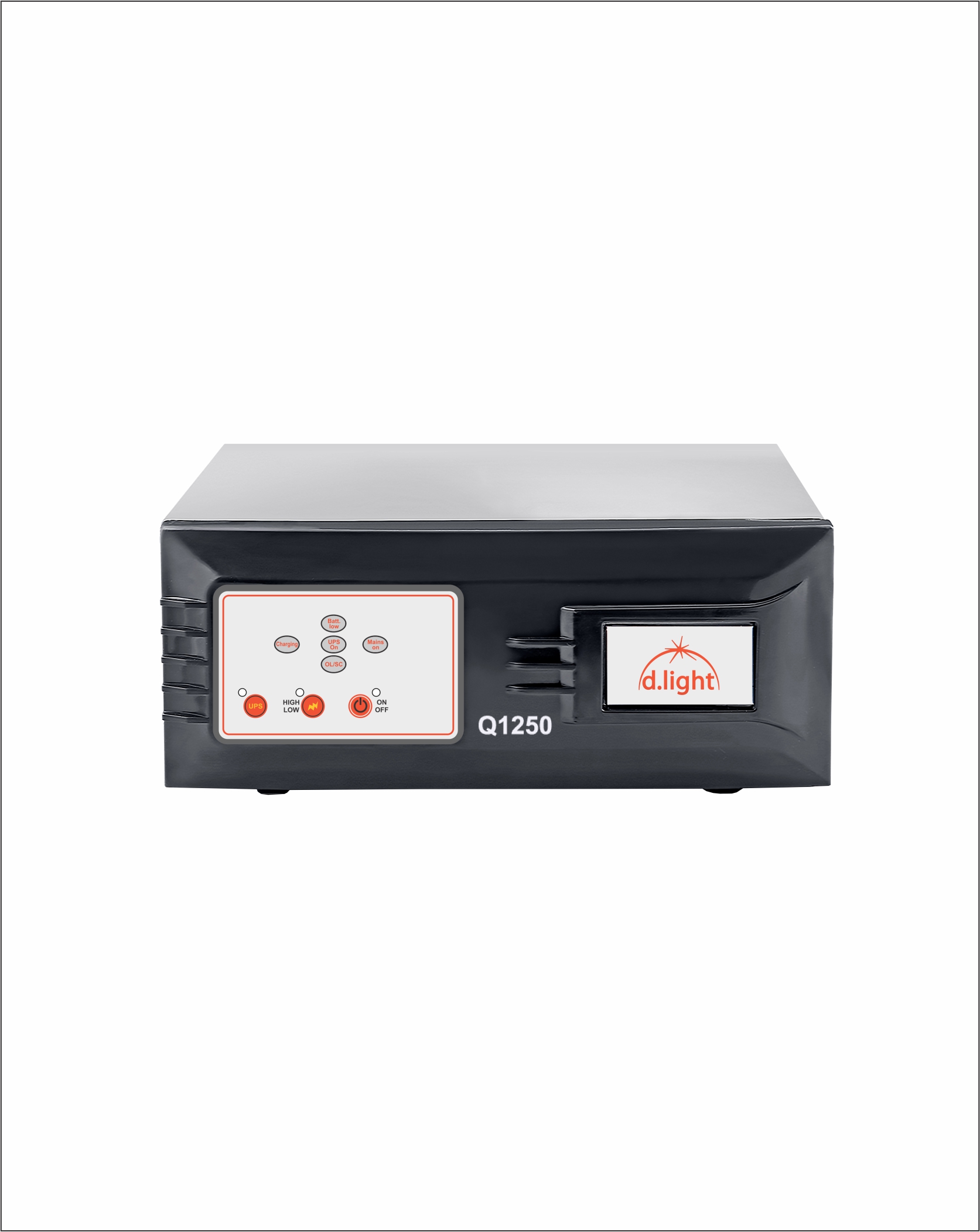

Q1250
Introducing the d.light Q1250 square wave inverter, the game-changer in power backup solutions. This exceptional inverter is designed to provide reliable and efficient power supply in any situation. Its major USP lies in its advanced square wave technology, which ensures seamless and stable power delivery to your devices.
The d.light Q1250 square wave inverter stands out with its unmatched performance and versatility. Whether you're facing frequent power outages or need backup power for your appliances and gadgets, this inverter has got you covered. It seamlessly converts DC power into AC power, allowing you to continue using your devices without interruption.
Experience the reliability and convenience of the d.light Q1250 square wave inverter. Its compact design and user-friendly features make it easy to install and operate. Say goodbye to power limitations and embrace uninterrupted productivity with this powerful inverter.
Choose the d.light Q1250 square wave inverter and take control of your power needs. Trust in its superior performance and let it provide you with peace of mind during power outages or in remote locations. Empower your life with d.light!
- Square wave inverter: For all types of power cut situations, the square wave inverters from d.light provide a reliable backup.
- Advance protection: Get advanced protection against voltage fluctuations to protect your appliances while easily shifting between the inverter and the grid.
- Powerful charging: The C-20 rated deep cycle batteries show better charging efficiency even at low voltage for prolonged battery life and superior backup.
- Multi-stage charging: Its intelligent multi-stage charging features give longer battery life for better performance.
For reliable power backup in small homes and businesses, d.light brings the Q1250 square wave inverter. Get maximum efficiency for running the power loads and keep appliances safe with its overload protection feature
| Gross Weight | 9.5 kg (±0.2 kg) |
| Product Dimension | 365 x 345 x 185 mm (±10mm) (LXBXH) in mm |
| System rating | 850/12 VA |
| Operating DC voltage | 12 Vdc |
| Nominal Output voltage in inverter mode | 200V-270Vac |
| Max Battery charging current by grid in Hi/Lo option | 12/15 Amp (charging current level decrease > 13.2V±0.2V) |
| Grid Low cut Voltage (UPS load/Normal load) | 180/95 ± 10 Vac |
| Grid High cut Voltage (UPS load/Normal load) | 265/290 ± 10Vac |
| Selection of UPS Load/Normal Load | Through Switch |
| Noise @ 1 meter | <50 Db |
| Protections | Overload, Battery Deep Discharge, Battery Overcharge, Short Circuit, Over Temp, Fuse Trip, Battery Reverse, PV Reverse, Traic Fail |
| Indicatons LEDs | 5 LEDs (Main ON/Charging, UPS ON, Battery Low, Solar Charging and S/C-0/L) |
| Operating Temperature Range | 0-50 |
| Storage Temperature Range | 0-65 |
| Front Panel Details | Three Switches and Eight LED lights |
| Rear Panel Details (MCB, Terminal etc.) | O/P Socket, Fuse, Mains & Battery Cable and fan |
| Enclosure Protection | IP 20 |
| Mains Connection | 3 core copper cable size 0.75sqmm & 1.5mtr length |
| Output | 3 pin socket 16A |
| Fuse in Battery Path | Internal Fuse |
| Input Protection | Through Circuit Breaker |
