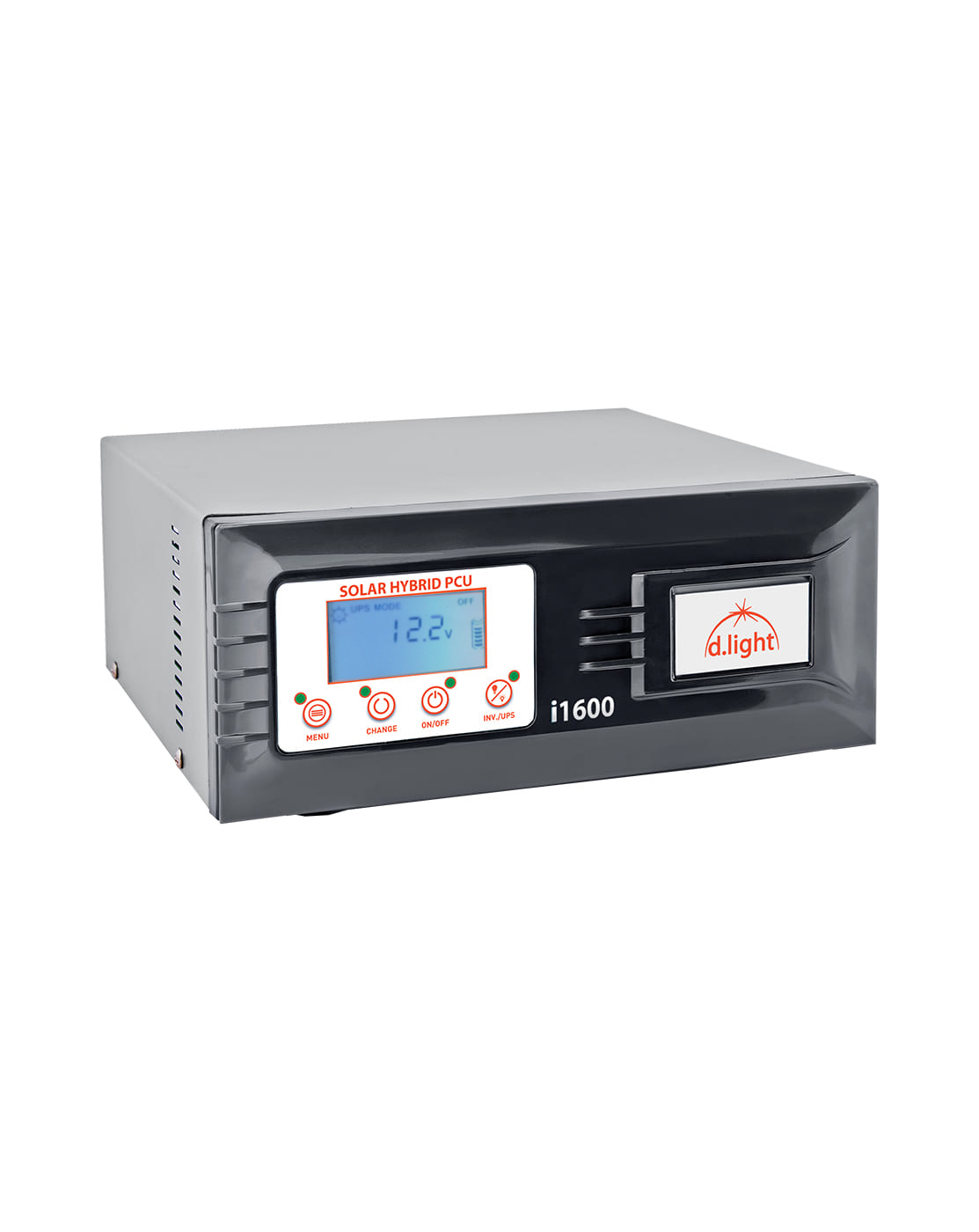

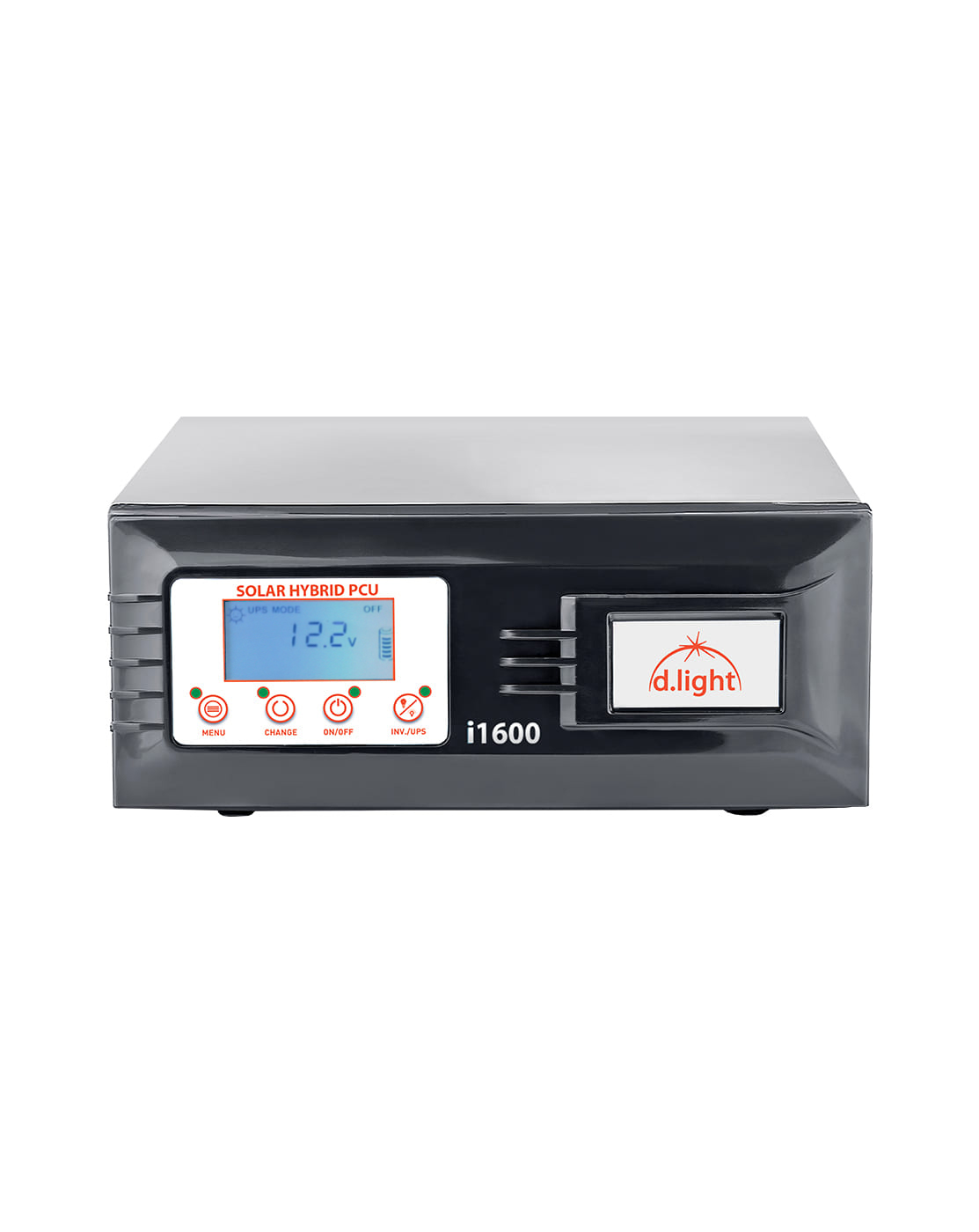

i1600
Discover the d.light i1600 Solar Hybrid PCU inverter, a revolutionary solution powered by Intelligent Solar First Technology (ISFT). This cutting-edge inverter prioritizes solar energy utilization, optimizing performance and energy efficiency like never before.
With the d.light i1600, experience uninterrupted power supply while reducing your carbon footprint. Harness the sun's energy and rely less on the grid, resulting in significant cost savings and a greener lifestyle.
This versatile inverter caters to a range of use cases, making it perfect for homes, businesses, and even remote locations. Power your appliances, or run essential equipment effortlessly with the d.light i1600.
Upgrade to the d.light i1600 Solar Hybrid PCU inverter and embrace the power of ISFT technology. Take control of your energy consumption, contribute to sustainability, and enjoy reliable power at your fingertips. Experience the future of solar innovation with the d.light i1600.
- ISFT: The Intelligent charge-sharing feature with ISFT in the system prioritises solar charging for higher savings on electricity bills.
- Multi-stage charging: Its intelligent multi-stage charging features give longer battery life for better performance.
- Advance protection: Get advanced protection against voltage fluctuations to protect your appliances while easily shifting between the inverter and grid.
- Pure Sine wave: With pure sine wave technology, the solar inverter system offers greater efficiency and operates silently for convenience and comfort.
- Powerful charging: The C-10 rated deep cycle batteries show better charging efficiency even at low voltage for prolonged battery life and superior backup.
- Large digital display: With a digital display that offers better visibility of functions in the d.light solar inverter, experience greater ease of use.
The iSeries i1600 solar inverter from d.light harnesses the power of the sun to bring reliable power backup for longer. With ISFT which prioritises solar charging over the grid for more efficient functionality and powerful charging even at low voltage, the d.light solar inverter brings uninterrupted convenience.
| Gross Weight | 11.5 kg (±0.2 kg) |
| Product Dimension | 370 x 350 x 185 mm (±10mm) (LXBXH) in mm |
| System rating | 1100/12 VA |
| Operating DC voltage | 12 Vdc |
| Maximum Solar array power | 500 Wp |
| Type of solar charger | PWM |
| Max current rating of SCC | 50Adc |
| Efficiency of SCC | >90% |
| Nominal Output voltage in inverter mode | 220V ± 7Vac |
| Max Battery charging current by Solar | 20±2Adc |
| Max Battery Charging Current to Battery by Solar+Grid | 20±2Adc |
| Grid Low Cut Voltage(UPS Load/Normal Load) | 180/100 ± 10 Vac |
| Grid High Cut Voltage(UPS Load/Normal Load) | 265/280 ± 10 |
| Selection of UPS Load/Normal Load | Through switch |
| Selection of Operating Mode | HC- Charging current = 20A±2A Solar + Mains till battery boost voltage with maximum solar sharing. System will not disconnect grid in any case |
| EC- Charging current = 20A±2A Solar + Mains till boost voltage, system will cut off the mains when battery voltage reaches boost voltage level and output load is transferred to Solar+ Battery and Grid reconnect <=11.8/11.2V per Battery. | |
| Noise @ 1 meter | <50 Db |
| Protections | Overload, Battery Deep discharge, Battery Overchange, O/P Short circuit (1 retry), Battery Hi, PV Reverse, Over Temp, Fuse Trip, Battery Reverse |
| LCD Display parameters | PV Current, Battery voltage, Mains voltage, UPS ON/OFF, UPS Mode, Symbol of sun (Smily) if solar available, (non smily in absence of solar), Load percentage (0 to 125%), over load, short ckt, fault, battery low, over temp, PV reverse, Fuse trip |
| Indication LEDs | 4 LEDs for Switch Status |
| Operating Temperature range | 0-50° C |
| Storage Temperature range | 0-65° C |
| Front panel Details | Display with Tact Switch |
| Rear Panel Details | O/P Socket, Circuit Breaker, Mains & Batt. Cable & Fan |
| Enclosure Protection | IP 20 |
| Mains Connection | 3 crore copper cable size 0.75sqmm & 1.25mtr length |
| Output | Output Socket 6A |
| Fuse in Battery Path | Internal Fuse |
| Fuse in Solar Path | Yes |
| Input Protection | Through Circuit Breaker |
