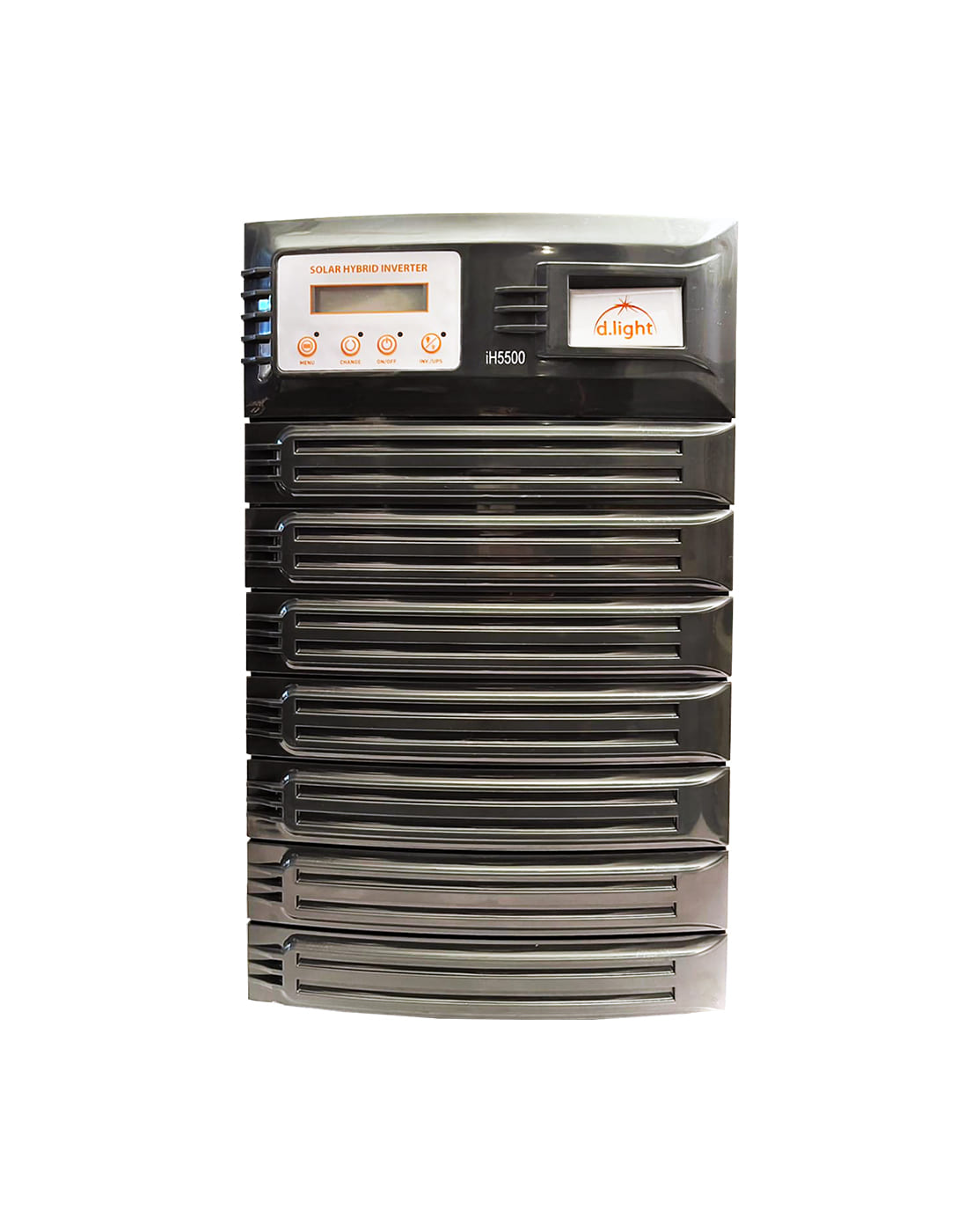

iH5500
Experience the future of reliable and sustainable power with the d.light iH5500 Solar Hybrid PCU inverter. Designed with the groundbreaking Intelligent Solar First Technology (ISFT), this cutting-edge device revolutionizes the way you utilize solar energy. Say goodbye to energy limitations and hello to an uninterrupted power supply!
The d.light iH5500 takes charging capabilities to a whole new level, providing powerful charging even at low voltages. It efficiently harnesses solar energy and ensures your devices stay charged, no matter the conditions. While dealing with frequent power outages, this solar hybrid PCU inverter has got you covered.
With the d.light iH5500, you can power a wide range of appliances, gadgets, and lighting systems effortlessly. Embrace the freedom of sustainable energy and enjoy uninterrupted productivity and convenience. Don't let power constraints hinder your lifestyle—choose the d.light iH5500 Solar Hybrid PCU inverter and take control of your energy needs.
Experience the future of power today. Embrace sustainability. Embrace reliability. Choose the d.light iH5500 and unlock a world of limitless possibilities. Empower your life with d.light!
- ISFT: The Intelligent charge-sharing feature with ISFT in the system prioritises solar charging for higher savings on electricity bills.
- Multi-stage charging: Its intelligent multi-stage charging features give longer battery life for better performance.
- Advance protection: Get advanced protection against voltage fluctuations to protect your appliances while easily shifting between the inverter and the grid.
- Pure Sine wave: With pure sine wave technology, the solar inverter system offers greater efficiency and operates silently for convenience and comfort.
- Powerful charging: The C-10 rated deep cycle batteries show better charging efficiency even at low voltage for prolonged battery life and superior backup.
- Large digital display: With a digital display that offers better visibility of functions in the d.light iH5500 solar inverter, experience greater ease of use.
The advanced iH5500 series solar inverter from d.light is a technologically sound solution to run your appliances in the absence of a grid connection. Drawing on solar energy, the inverter prioritises solar charging over the grid for more efficient functionality and powerful charging even at low voltage to ensure you can benefit from longer power backups.
| Gross Weight | 50 kg (±0.2 kg) |
| Product Dimension | 520 x 435 x 600 mm (±10mm) (LXBXD) in mm |
| System rating | 5000/48 VA |
| Operating DC voltage | 48Vdc |
| Maximum Solar array power | 5000Wp |
| Type of solar charger | PWM |
| Max current rating of SCC | 50Adc |
| Efficiency of SCC | >90% |
| Nominal Output voltage in inverter mode | 220V ± 7Vac |
| Max Battery charging current by Solar | 20±2Adc |
| Max Battery Charging Current to Battery by Solar+Grid | 20±2Adc |
| Grid Low Cut Voltage(UPS Load/Normal Load) | 180/100 ± 10Vac |
| Grid High Cut Voltage(UPS Load/Normal Load) | 265/280 ± 10Vac |
| Selection of UPS Load/Normal Load | Through switch |
| Selection of Operating Mode | HC- Charging current = 20A±1A Solar + Mains till battery boost voltage with maximum solar sharing. System will not disconnect grid in any case |
| EC- Charging current = 20A±1A Solar + Mains till boost voltage, system will cut off the mains when battery voltage reaches boost voltage level and output load is transferred to Solar+ Battery and Grid reconnect <=11.5V per Battery. | |
| Noise @ 1 meter | <50 Db |
| Protections | Batt. Low, Batt. High, Overload, Short circuit Over Temp, PV Reverse, MCB Trip/Fuse Trip |
| LCD Display parameters | PV Current, Battery voltage, Mains voltage, PCU on-off, UPS Mode on-off, Solar On-off, Load Percentage (0 to 150%), Load Status (on solar, battery or grid), Charging status, Over Load, Short Circuit Fault, Battery Low, Over Temp, PV Reverse, MCB Trip. |
| Indication LEDs | 4 LEDs for Switch Status |
| Operating Temperature range | 0-50° C |
| Storage Temperature range | 0-65° C |
| Front panel Details | Display with Tact Switch |
| Rear Panel Details | Fan, MCB, Rotory, Terminal, Switch |
| Enclosure Protection | IP 20 |
| Mains Connection | Terminal 30A |
| Output | Terminal 30A |
| Fuse in Battery Path | Through MCB |
| Fuse in Solar Path | Through MCB |
| Input Protection | Through MCB |
